Model 652-0 Temperature Transmitters

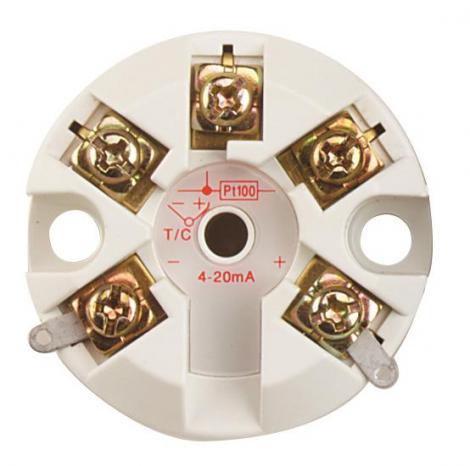

Model 652-0 High Accuracy Programmable Transmitter
The MODEL 652-0 Programmable Transmitter accepts any commonly used temperature sensor, slidewire transducer or millivolt signal and produces a 4 to 20 mA output signal. Input type and range are easily programmed using a PC and the simple Windows™ based software program Model 652-C sold separately. The user can completely reconfigure units of measure, high/low range, filtering factor, offset, and transmitter reference details. The Model 652-0 features 500V input to output isolation to remove ground loop effects and four filter settings to remove incoming signal noise. Outstanding versatility and compact size make this unit ideal for any temperature application.
- High accuracy, universal input
- Configuration kit option
- Digital signal filtering for stable readings
Select & Configure Model
| Base Model # | Transmitter Type | Approvals | Ambient Operating Temperature | Sensor Input Type | Normally In Stock | Configure Part # |
| 652-0 | Head Mount | CE | -40 to 85°C -40 to 185°F | RTD Thermocouple | Inquire |
