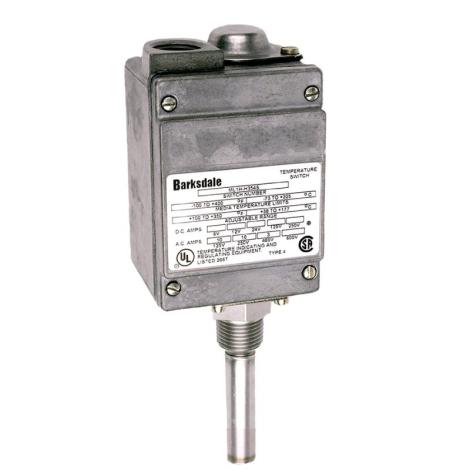

ML1H / L2H Local-Mount Temperature Switches
ML1H and L2H temperature switches provide mechanical temperature control with local immersion sensing. ML1H has one SPDT circuit; L2H has two independently adjustable SPDT circuits. Tamper-resistant external knobs provide setpoint adjustment, with knob indication used as a reference.
Select the switching element, temperature range and wetted material for the application. Standard housings provide NEMA 4 outdoor and NEMA 13 indoor protection. Thermowells and a stainless-sensor NEMA 4X option are available.
Select & Configure Model
| Base Model # | Sensing / Layout | Temperature Range / Setpoint | Outputs | Probe / Connection | Availability | Add to Cart / Configure Part # |
| ML1H | Local immersion; single setpoint | -50 to 450°F; selected range governs | 1 SPDT | Brass or 304 stainless steel; optional thermowell | Inquire | Configurator |
| L2H | Local immersion; dual setpoints | -50 to 450°F; selected range governs | 2 independent SPDT circuits | Brass or 304 stainless steel; optional thermowell | Inquire | Configurator |
