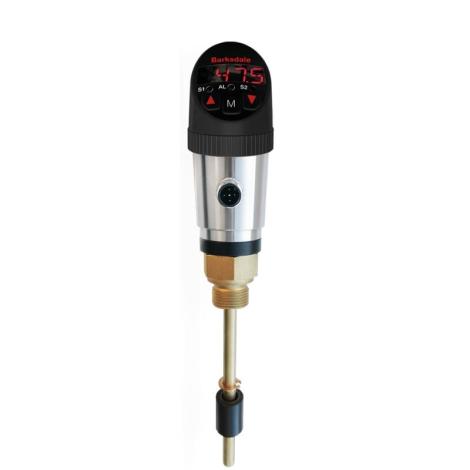

BTLS2000 Electronic Temperature and Level Switches

BTLS2000 combines a Class A Pt100 temperature sensor and reed-switch level sensing in one top-mounted assembly. A four-digit red display and three-button menu provide local temperature indication and adjustment. Temperature switching points are programmable; level switching positions are fixed by the ordered dimensions.

Choose dual temperature switching, or dual temperature switching with a 4–20 mA or 0–10 V analogue output. The model table provides six clearly defined online L1 layouts. Other dimensions are available by inquiry through Mod-Tronic.

BTLS2000 Temperature and Level Switches — Catalogue BTLS2000 Temperature and Level Switches — Operating Instructions

Select & Configure Model

Base Model #	Sensing / Layout	Temperature Range / Setpoint	Outputs	Probe / Connection	Availability	Add to Cart / Configure Part #

BTLS2	L1 100 mm; L0 130 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–55 mm	Inquire	Configurator
BTLS2	L1 180 mm; L0 210 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–135 mm	Inquire	Configurator
BTLS2	L1 200 mm; L0 230 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–155 mm	Inquire	Configurator
BTLS2	L1 300 mm; L0 330 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–255 mm	Inquire	Configurator
BTLS2	L1 400 mm; L0 430 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–355 mm	Inquire	Configurator
BTLS2	L1 470 mm; L0 500 mm	0 to 100°C / -30 to 140°C; °F codes available	2 temperature points; optional analogue; level contacts	M20x1.5; L2 37–425 mm	Inquire	Configurator

BTLS2000 Electronic Temperature and Level Switches

Level dimensions and ordering
