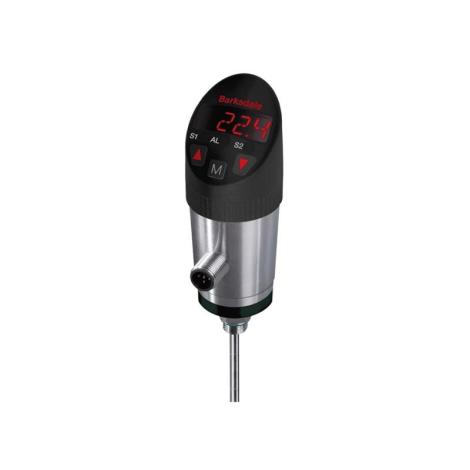

BTS3000 electronic temperature switches combine a Class A Pt100 sensor, a four-digit red display and programmable temperature switching in a compact probe-mounted assembly. The display and electrical connection rotate through 320° for convenient installation.

Select switching outputs, analogue output or IO-Link according to the control system. Process connection, sealing, insertion length and temperature range determine the complete part number. Mating connectors are ordered separately.

BTS3000 Temperature Switches — Catalogue BTS3000 Temperature Switches — Operating Instructions

Select & Configure Model

Base Model #	Sensing / Layout	Temperature Range / Setpoint	Outputs	Probe / Connection	Availability	Add to Cart / Configure Part #

BTS3	Integral Class A Pt100	0 to 100°C / -30 to 140°C; °F codes available	Switching, analogue or IO-Link; select configuration	NPT, UNF or G1/4; length selected	Inquire	Configurator

Temperature Range:

Ordering ranges: 0 to 100°C; -30 to 140°C; 32 to 210°F; -22 to 280°F.

Ambient Temperature :

Electronics -10 to 60°C (14 to 140°F).

Accuracy:

Less than ±0.5% full scale at 25°C.

Power Supply:

15 to 28 VDC, reverse-polarity protected; SELV/PELV Class 2.

Output(s):

One or two switching points; optional 4–20 mA / 0–10 V analogue output, relay or IO-Link.

Display:

4-digit red 14-segment LED, 9 mm characters; 320° rotation.

Material:

Wetted parts: 304 stainless steel. Housing: 304 stainless steel, PBT and PA 6.6 GF30.

Electrical Connections:

M12 connector; pin count depends on output. Mating connector not included.

Response Time:

Thermal time constant T09 approximately 40 s; analogue update 2 ms.

Operating Temperature:

Media -30 to 140°C (-22 to 284°F); use the selected ordering range.

Storage Temperature:

-30 to 80°C (-22 to 176°F).

Repeatability:

±0.1% full scale.

Power Consumption:

Approximately 50 mA without load; 80 mA for relay output code 6.

Output Ratings:

PNP maximum 500 mA; IO-Link versions maximum 250 mA. Relay code 6: maximum 1 A, 60 V, 30 VA.

Pressure Limit:

Maximum 200 bar (2,900 psi).

Process Connection:

Online: 1/4 NPT male, 7/16-20 UNF (SAE-4) or G1/4 male. Other connections by inquiry.

Enclosure Rating:

Type 4X / IP65 and Type 6 / IP67 with suitable mating connector.

Approvals:

cULus E302981 for output codes 1–5 only. Codes 6, 7 and 8 are not UL approved.

Configuration and installation

The online configurator offers 1/4 NPT, 7/16-20 UNF (SAE-4) and G1/4 process connections. NPT requires the no-seal code X; UNF and G connections use FKM or EPDM seals. Metric insertion lengths apply to G threads; inch insertion lengths apply to NPT and UNF. Incompatible choices are excluded.

Other connections, FFKM seals and thermowells require factory consultation through Mod-Tronic. Probes longer than 300 mm (11.8 in) must be kept out of direct flow. Shock and vibration suitability for probes longer than 100 mm depends on the application.

Approval qualification: cULus E302981 applies only to output codes 1–5. Relay code 6 and IO-Link codes 7–8 are not UL approved. Connector pin count and wiring depend on the selected output; use the matching drawing. Availability is by inquiry.
