MINCO AS9 Hazardous Area ATEX, IECEx, CSA RTD & Thermocuple Assemblies

Standard, easy-to-order MINCO Hazardous Area RTD & Thermocouple Assemblies to fit a variety of applications

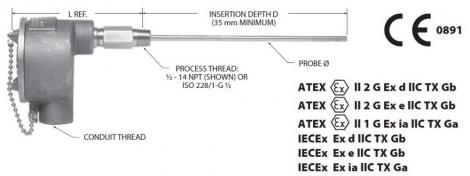

The AS9 Series RTD assemblies comply with European standards for electrical apparatus for potentially explosive atmospheres: ATEX Directive 94/9/EC and International IECEx certification schemes for explosive atmospheres.

Flameproof assemblies can be used in Zones 1 or 2
Increased safety assemblies can be used in Zones 1 or 2
Intrinsic safety assemblies can be used in Zones 0, 1 or 2 when used with an appropriate barrier
Features tip-sensitive, all stainless or MgO filled RTD probe for fast response
Spring-loaded holder ensures good probe contact
U.S. or metric threads

Use Configurator button below to select and configure a part number ⇩

Download

Select & Configure Model

Base Model #	Sensor Probe Diameter	# of Elements or # of Junctions	Case Style	RTD/Thermocouple	Normally In Stock	Add to Cart / Configure Part #

AS900	0.250" (6.4 mm)	Single	Tip-sensitive	RTD	0	Configurator
AS902	0.215" (5.5mm)	Single	Tip-sensitive	RTD	0	Configurator
AS804	0.236" (6.0 mm)	Single	MgO filled (platinum only)	RTD	0	Configurator
AS901	0.236" (6.0 mm)	Single	Tip-sensitive	RTD	0	Configurator
AS803	0.236" (6.0 mm)	Dual	All stainless	RTD	0	Configurator
AS810	0.250" (6.4 mm)	Single	Tip-sensitive	RTD	0	Configurator
AS812	0.250" (6.4 mm)	Single	All stainless	RTD	0	Configurator
AS814	0.250" (6.4 mm)	Single	MgO filled (platinum only)	RTD	0	Configurator
AS811	0.250" (6.4 mm)	Dual	Tip-sensitive	RTD	0	Configurator
AS813	0.250" (6.4 mm)	Dual	All stainless	RTD	0	Configurator
AS815	0.250" (6.4 mm)	Dual	MgO filled (platinum only)	RTD	0	Configurator
AS820	0.188" (4.7mm)	Single	All stainless	RTD	0	Configurator
AS821	0.188" (4.7mm)	Dual	All stainless	RTD	0	Configurator
AS822	0.188" (4.7mm)	Single	All stainless	RTD	0	Configurator
AS823	0.188" (4.7mm)	Dual	All stainless	RTD	0	Configurator
