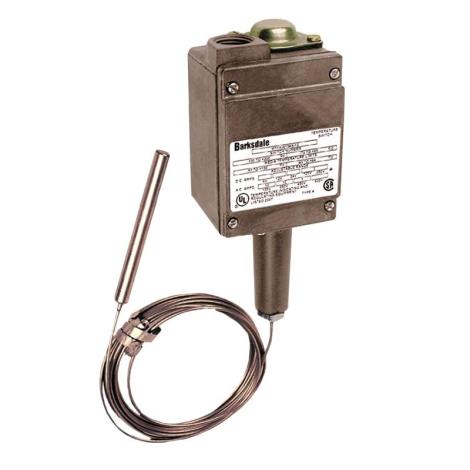

MT1H / T2H Remote-Mount Temperature Switches
MT1H and T2H temperature switches use a remote bulb and capillary to separate the sensing location from the switch enclosure. Their ambient-compensated mechanical sensing system supports reliable industrial temperature control.
MT1H provides one SPDT circuit; T2H provides two independently adjustable SPDT circuits. Select a copper or 304 stainless steel sensor, temperature range, capillary length and optional stainless steel armor.
Select & Configure Model
| Base Model # | Sensing / Layout | Temperature Range / Setpoint | Outputs | Probe / Connection | Availability | Add to Cart / Configure Part # |
| MT1H | Remote bulb/capillary; single setpoint | -50 to 600°F; selected range governs | 1 SPDT | 6, 12 or 25 ft; 25 ft requires stainless + armor | Inquire | Configurator |
| T2H | Remote bulb/capillary; dual setpoints | -50 to 600°F; selected range governs | 2 independent SPDT circuits | 6, 12 or 25 ft; 25 ft requires stainless + armor | Inquire | Configurator |
