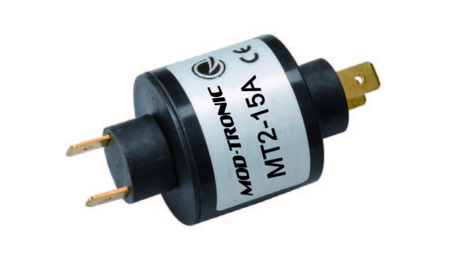

MT2 Series Slip Rings


High Current Slip Rings MT Series

A slip ring is typically used in an eletro-mechanical system where unrestrained, continuous rotation is required, and power and/or data needs to be transferred across the rotating joint. The MT series slip rings are designed for high current applications that also require a high duty cycle. Use of channeled brush technology increases life by providing multiple points of contact and reducing the contact pressure between the brush and the ring. These slip rings contain no mercury or other restricted substances, so they are excellent replacements for older technology slip rings that contain mercury.


Select & Configure Model
Base Model #TerminalsVoltage AC/DCAmp Rating @240VACMax. RPMTemp Max. F (C) / Min. F (C)Rotation Torque (gm-cm)Normally
In Stock
Configure Part #

MT2-15A20-2402@ 15A400-20 to +80ºC-Inquire
MT2-15A-T20-2402@ 15A400-40 to +80ºC-Yes
MT2-20A20-2402@ 20A400-20 to +80ºC-Inquire
MT2-20A-T20-2402@ 20A400-40 to +80ºC-Yes
