Series 861SSR DIN/Panel Mountable Solid State Relay
Series 861SSR DIn/panel Mountable Solid State Relay

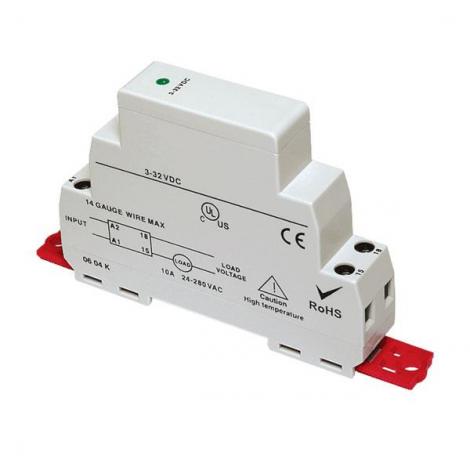

Series 861SSR DIN/Panel Mountable Solid State Relay features an internal heat sink, bistable clips for DIN rail or panel mounting and an LED indicator light. It is a completely solid state relay - it has NO moving parts. The DSSR provides reliable switching and long-life operation in applications where high inrush currents or induced currents can affect mechanical state relay operation. The compact housing also minimizes panel space.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| 861SSR210-AC-1 | SSR, 10A, 90-280 VAC input, 24-280 VAC zero-cross output. | Inquire | |
| 861SSR210-DC-1 | SSR, 10A, 3-32 VDC input, 24-280 VAC zero-cross output. | Inquire |
