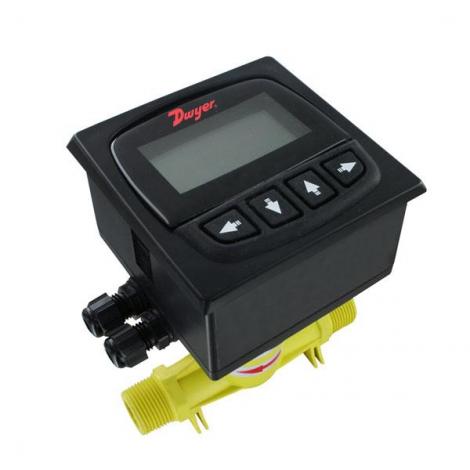

Series DFMT & DFMT2 Digital Paddlewheel Flow Transmitter
Flow and Total Indication, Easy to Read LCD Display
The SERIES DFMT Digital Paddlewheel Flow Transmitter provides instantaneous, as well as totalizing flow monitoring. The unit offers a user selectable 4 to 20 mA or pulse output with compact display.
The Series DFMT2 Remote Digital Paddlewheel Flow Transmitter is a two piece digital flow transmitter that provides instantaneous, as well as totalizing flow monitoring. The two piece design allows the user to separate the control panel from the application, making it ideal for industrial use in reverse osmosis water purifying systems and any other applications where space is limited. The large backlit display makes navigating through the menu structure simple. The Series DFMT2 uses high accuracy, industry proven paddlewheel technology, offers a user selectable 4 to 20 mA or pulse output, and has a corrosion resistant PVDF sensor giving it a long operation life. Users can reset the totalizer at any time and set a security password protecting the system settings from unauthorized changes.
Base Model # | Description | Normally In Stock | Configure Part # |
DFMT-10A | 3/8" NPT Digital Flow Transmitter, range 0.5 to 8 GPM (0.1 to 2 m3/h) | Inquire | |
DFMT-15A | 1/2" NPT Digital Flow Transmitter, range 0.9 to 18 GPM (0.2 to 4.09 m3/h) | Inquire | |
DFMT-20A | 3/4" NPT Digital Flow Transmitter, range 1.3 to 26 GPM (0.3 to 5.91 m3/h) | Inquire | |
DFMT-25A | 1" NPT Digital Flow Transmitter, range 2.2 to 50 GPM (0.5 to 11.36 m3/h) | Inquire | |
DFMT-40A | 1-1/2" NPT Digital Flow Transmitter, range 6.6 to 105 GPM (1.5 to 23.85 m3/h) | Inquire | |
DFMT-50A | 2" NPT Digital Flow Transmitter, range 8.8 to 180 GPM (2 to 40.9 m3/h) | Inquire | |
DFMT2-10A | Remote Digital Flow Transmitter, 3/8" NPT | Inquire | |
DFMT2-15A | Remote Digital Flow Transmitter, 1/2" NPT | Inquire | |
DFMT2-20A | Remote Digital Flow Transmitter, 3/4" NPT | Inquire | |
DFMT2-25A | Remote Digital Flow Transmitter, 1" NPT | Inquire | |
DFMT2-40A | Remote Digital Flow Transmitter, 1-1/2" NPT | Inquire | |
DFMT2-50A | Remote Digital Flow Transmitter, 2" NPT | Inquire |
