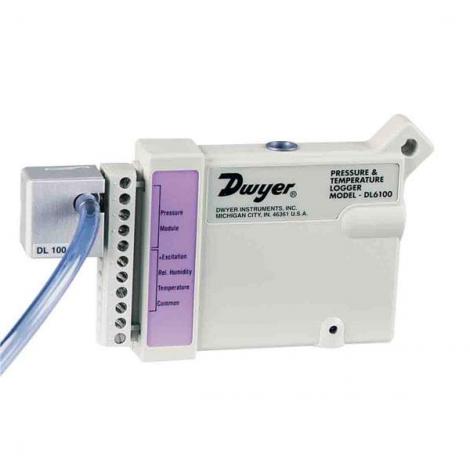

Series DL6 Pressure/Temperature/RH Data Logger
Self-Powered, 5-Channel, Store up to 32,768 Readings, Compact
Monitor and troubleshoot HVAC systems, verify energy management systems, or track performance of pneumatically controlled valves with Series DL6 Pressure/Temperature/RH Data Logger. Units include an on-board thermistor for ambient temperature measurement and pressure module. Remote humidity/temperature sensor and plug-in humidity sensor are sold separately. Loggers can store up to 32,768 readings and operate independently from any external power supply with built-in lithium battery. Use Model DL200 Windows® software (sold separately) to quickly program the logger or upload data to a computer.
Select & Configure Model
| Base Model # | Accuracy | Sampling Rates | Range | Power Requirements | Approvals | Normally In Stock | Configure Part # |
| DL6005 | ±1% FS | Selectable from 8 seconds to once every 5 days. | -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing | 3.6 V TL5134 lithium metal battery, internal, factory replaceable. | CE | Inquire | |
| DL6030 | ±1% FS | Selectable from 8 seconds to once every 5 days. | -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing | 3.6 V TL5134 lithium metal battery, internal, factory replaceable. | CE | Inquire | |
| DL6100 | ±1% FS | Selectable from 8 seconds to once every 5 days. | -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing | 3.6 V TL5134 lithium metal battery, internal, factory replaceable. | CE | Inquire |
