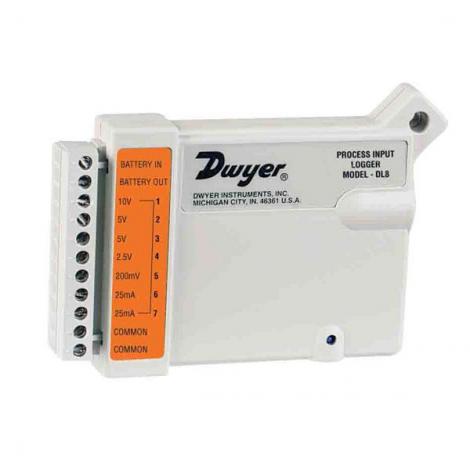

Series DL8 Process Data Logger
8-Channels, Compact, Self-Powered, Stores up to 32,768 Readings
Eliminate traditional paper chart recorders with the Series DL8 Process Data Logger. This versatile, multi-channel data logger monitors and stores up to 32,768 process readings for later download to an IBM compatible computer. Seven external input channels easily interface with common transducer and transmitter outputs. Internal thermistor measures ambient temperature conditions. Programming is simple and easy with the DL200 Windows® software and connecting cable (sold separately). The Series DL8 Process Data logger is ideal for monitoring temperature, relative humidity, pressure, wind speed, current, voltage and power.
Base Model # | Accuracy | Sampling Rates | Range | Power Requirements | Approvals | Normally In Stock | Configure Part # |
DL8 | ±1% of full scale | Selectable from 8 seconds to once every 5 days | -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing. | 3.6 V TL5134 lithium metal battery | CE | Inquire |
