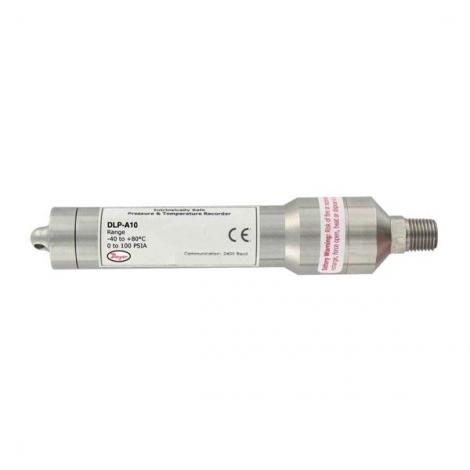

Series DLP Pressure/Temperature Data Logger
1/4˝ NPT Fitting, Up to 5000 psia
The Series DLP Pressure/Temperature Data Logger can record pressure and temperature. The 1/4˝ NPT fitting comes standard and allows the logger to be adapted to almost any pressure fitting. The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature recorder, and many of the models provide a choice between measuring pressure in psia or psig. The DLP can easily be started and stopped from a PC or delayed to start up to six months in advance. The battery-powered data logger can store over 16,000 measurements per channel, and the easy to use DL700 software makes retrieving data simple.
Base Model # | Accuracy | Sampling Rates | Range | Power Requirements | Approvals | Normally In Stock | Configure Part # |
DLP-A08 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-A10 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-A13 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-A14 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-A15 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-A19 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-G08 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-G10 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-G13 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire | |
DLP-G14 | Temperature: ±0.9°F (±0.5°C) Pressure: 2% FSR | Selectable from 2 sec to 12 hrs. | Temperature: -40 to 176°F (-40 to 80°C) Pressure: 0 to 5000 psia | 3.6 V TL2150 lithium metal battery | CE | Inquire |
