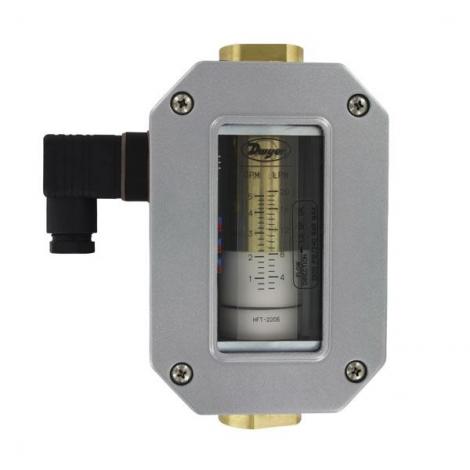

Series HFT In-Line Flow Transmitters
Local Flow Indication, Unrestricted Mounting, 4-20 mA, 0-5 V, and 1-5 V Output
The Series HFT In-Line Flow Transmitter provides continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4-20 mA, 0-5 and 1-5 VDC analog outputs.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| HFT-1112 | In-line flow transmitter, range 1.5-12 SCFM air, 1/4" female NPT. | Inquire | |
| HFT-1123 | In-line flow transmitter, range 4-23 SCFM air, 1/4" female NPT. | Inquire | |
| HFT-2205 | In-line flow transmitter, range 0.5-5.0 GPM (1-19 LPM) water, 1/2" female NPT. | Inquire | |
| HFT-2315 | In-line flow transmitter, range 1-15 GPM (3.8-55 LPM) water, 3/4" female NPT. | Inquire | |
| HFT-2320 | In-line flow transmitter, range 2-20 GPM (7.5-75 LPM) water, 3/4" female NPT. | Inquire | |
| HFT-2440 | In-line flow transmitter, range 4-40 GPM (15-151 LPM) water, 1" female NPT. | Inquire | |
| HFT-2550 | In-line flow transmitter, range 5-50 GPM (19-189 LPM) water, 1-1/2" female NPT. | Inquire | |
| HFT-3202 | In-line flow transmitter, range 0.2-2.0 GPM (0.75-7.5 LPM) water, 1/2" female NPT. | Inquire | |
| HFT-3210 | In-line flow transmitter, range 1-10 GPM (3.8-38 LPM) water, 1/2" female NPT. | Inquire |
