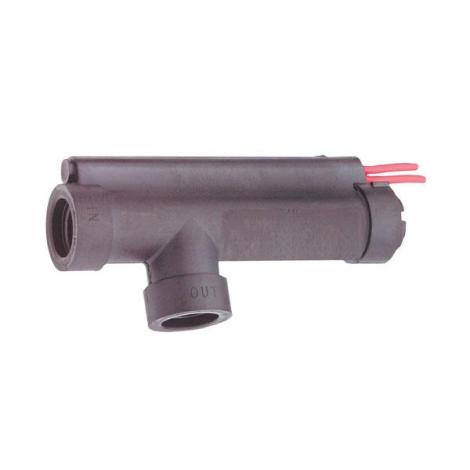

Series P4 PPS Piston Flow Switch
Fixed Set Points from 0.1 to 1.5 GPM, SPST and SPDT Switching
The Series P4 PPS Flow Switch features a molded plastic construction for enhanced performance. Monitor liquids with fixed set points from 0.1 to 1.5 GPM. Choose normally open or normally closed SPST or SPDT hermetically sealed reed switch technology. The industrial switch features PPS R4 housing and piston, 316SS spring, Fluoroelastomer Oring and Epoxy. The inlet and outlet ports are 9/16˝-18 UNF-28 thread with optional 1/8˝ and 1/4˝ NPT or 1/2˝ barbed adapters.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| P4-11 | PPS piston flow switch, actuation set point .1 GPM (.38 LPM), SPST, NO switch. | Inquire | |
| P4-12 | PPS piston flow switch, actuation set point .25 GPM (.95 LPM), SPST, NO switch. | Inquire | |
| P4-13 | PPS piston flow switch, actuation set point .5 GPM (1.89 LPM), SPST, NO switch. | Inquire | |
| P4-14 | PPS piston flow switch, actuation set point .75 GPM (2.84 LPM), SPST, NO switch. | Inquire | |
| P4-15 | PPS piston flow switch, actuation set point 1 GPM (3.7 LPM), SPST, NO switch. | Inquire | |
| P4-16 | PPS piston flow switch, actuation set point 1.5 GPM (5.68 LPM), SPST, NO switch. | Inquire | |
| P4-31 | PPS piston flow switch, actuation set point .1 GPM (.38 LPM), SPDT switch. | Inquire | |
| P4-32 | PPS piston flow switch, actuation set point .25 GPM (.95 LPM), SPDT switch. | Inquire | |
| P4-33 | PPS piston flow switch, actuation set point .5 GPM (1.89 LPM), SPDT switch. | Inquire | |
| P4-34 | PPS piston flow switch, actuation set point .75 GPM (2.84 LPM), SPDT switch. | Inquire | |
| P4-35 | PPS piston flow switch, actuation set point 1 GPM (3.7 LPM), SPDT switch. | Inquire | |
| P4-36 | PPS piston flow switch, actuation set point 1.5 GPM (5.68 LPM), SPDT switch. | Inquire |
