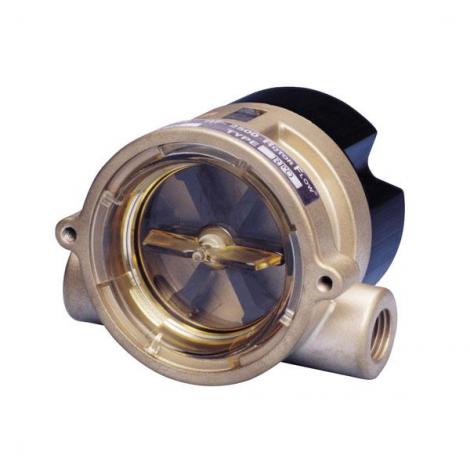

Series SF2 Sight Flow Meters
SPDT or Pulse Output, Visual Flow Confirmation, Brass Body
The Series SF2 Sight Flow Meters combine visual confirmation of flow with a relay or pulse output. The SF2-1 offers a SPDT relay output and the SF2-2 offers a pulse output proportional to the rate of flow. The 4.5 to 24 VDC pulse output is compatible with most digital logic families.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| SF2-101 | Sight flow meter, range 0.5-5.0 GPM, 110 VAC, 1/4" female NPT. | Inquire | |
| SF2-104 | Sight flow meter, range 0.5-5.0 GPM, 24 VDC, 1/4" female NPT. | Inquire | |
| SF2-111 | Sight flow meter, range 4.0-20.0 GPM, 110 VAC, 1/2" female NPT. | Inquire | |
| SF2-114 | Sight flow meter, range 4.0-20.0 GPM, 24 VDC, 1/2" female NPT. | Inquire | |
| SF2-121 | Sight flow meter, range 5.0-30.0 GPM, 110 VAC, 3/4" female NPT. | Inquire | |
| SF2-124 | Sight flow meter, range 5.0-30.0 GPM, 24 VDC, 3/4" female NPT. | Inquire | |
| SF2-131 | Sight flow meter, range 8.0-60.0 GPM, 110 VAC, 1" female NPT. | Inquire | |
| SF2-134 | Sight flow meter, range 8.0-60.0 GPM, 24 VDC, 1" female NPT. | Inquire | |
| SF2-204 | Sight flow meter, range 0.5-5.0 GPM, 4.5-24 VDC, 1/4" female NPT. | Inquire | |
| SF2-214 | Sight flow meter, range 4.0-20.0 GPM, 4.5-24 VDC, 1/2" female NPT. | Inquire | |
| SF2-224 | Sight flow meter, range 5.0-30.0 GPM, 4.5-24 VDC, 3/4" female NPT. | Inquire | |
| SF2-234 | Sight flow meter, range 8.0-60.0 GPM, 4.5-24 VDC, 1" female NPT. | Inquire |
