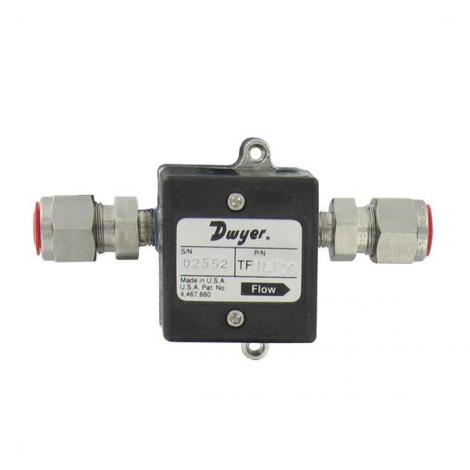

Series TFM-LP Liquid Turbine Flow Meter
316SS Body, 0 to 5 VDC and Pulse Outputs
The Series TFM-LP Liquid Turbine Flowmeter utilizes a turbine wheel and electrooptical detection to convert flow rates into a linear 0 to 5 VDC and pulsed output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| TFM-LP03 | Liquid turbine flow meter, range .21 to 1.6 GPH (.013 to 0.1 LPM), 1/8" OD connection. | Inquire | |
| TFM-LP04 | Liquid turbine flow meter, range .32 to 3.2 GPH (0.02 to 0.2 LPM), 1/4" OD connection. | Inquire | |
| TFM-LP05 | Liquid turbine flow meter, range .79 to 7.9 GPH (0.05 to 0.5 LPM), 1/4" OD connection. | Inquire | |
| TFM-LP06 | Liquid turbine flow meter, range 1.6 to 16 GPH (0.1 to 1 LPM), 1/4" OD connection. | Inquire | |
| TFM-LP07 | Liquid turbine flow meter, range 3.2 to 32 GPH (0.2 to 2 LPM), 1/4" OD connection. | Inquire | |
| TFM-LP08 | Liquid turbine flow meter, range 7.9 to 79 GPH (0.5 to 5 LPM), 3/8" OD connection. | Inquire | |
| TFM-LP09 | Liquid turbine flow meter, range 16 to 160 GPH (1 to 10 LPM), 3/8" OD connection. | Inquire |
