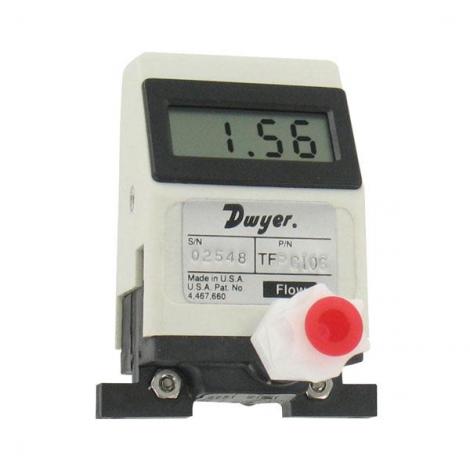

Series TFP-GI Gas Turbine Flow Meter
PPS Body, 0 to 5 VDC Output, LCD Indication
Series TFP-GI Gas Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| TFP-GI03 | Gas turbine flow meter, range .042 to .21 SCFH (0.02 to 0.1 LPM), 1/8" OD connection. | Inquire | |
| TFP-GI04 | Gas turbine flow meter, range .085 to .42 SCFH (0.04 to 0.2 LPM), 1/8" OD connection. | Inquire | |
| TFP-GI05 | Gas turbine flow meter, range .21 to 1.1 SCFH (0.1 to 0.5 LPM), 1/8" OD connection. | Inquire | |
| TFP-GI06 | Gas turbine flow meter, range .42 to 2.1 SCFH (0.2 to 1 LPM), 1/8" OD connection. | Inquire | |
| TFP-GI07 | Gas turbine flow meter, range .85 to 4.2 SCFH (0.4 to 2 LPM), 1/4" OD connection. | Inquire | |
| TFP-GI08 | Gas turbine flow meter, range 2.1 to 11 SCFH (1 to 5 LPM), 1/4" OD connection. | Inquire |
