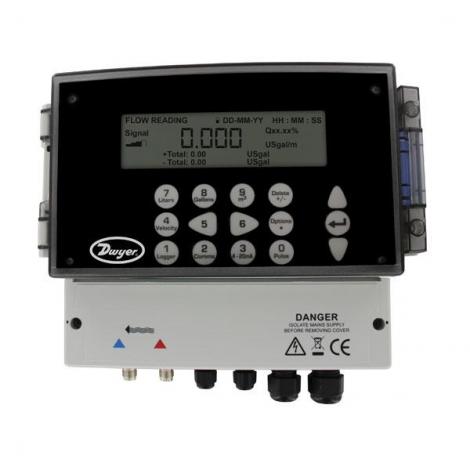

Series UFB & UFC Ultrasonic Flowmeter Set
Non-Invasive Pipe Flow Measurement
The Series UFB & UFC Ultrasonic Flowmeter Sets utilize the transit-time differencefor measuring flow rates in pipes. These units are permanent mount, where the converters can be mounted on a surface or pipe with a 4 to 20 mA and pulse output capabilities for pipe sizes from1/2 to 79˝ (13 to 2000 mm). The Series UFC offers the same features plus data logging capability.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| UFB-122 | Complete Ultrasonic flowmeter set, pipe size range 0.5 to 4.5" (13 to 115 mm), 86 to 264 VAC power supply. | Inquire | |
| UFB-123 | Complete Ultrasonic flowmeter set, pipe size range 2 to 79" (50 to 2000 mm), 86 to 264 VAC power supply. | Inquire | |
| UFB-222 | Complete Ultrasonic flowmeter set, pipe size range 0.5 to 4.5" (13 to 115 mm), 24 VAC/VDC power supply. | Inquire | |
| UFB-223 | Complete Ultrasonic flowmeter set, pipe size range 2 to 79" (50 to 2000 mm), 24 VAC/VDC power supply. | Inquire | |
| UFC-122 | Complete Ultrasonic flowmeter set, pipe size range 0.5 to 4.5" (13 to 115 mm), 86 to 264 VAC. | Inquire | |
| UFC-123 | Complete Ultrasonic flowmeter set, pipe size range 2 to 79" (50 to 2000 mm), 86 to 264 VAC. | Inquire | |
| UFC-222 | Complete Ultrasonic flowmeter set, pipe size range 0.5 to 4.5" (13 to 115 mm), 24 VAC/VDC. | Inquire | |
| UFC-223 | Complete Ultrasonic flowmeter set, pipe size range 2 to 79" (50 to 2000 mm), 24 VAC/VDC. | Inquire |
