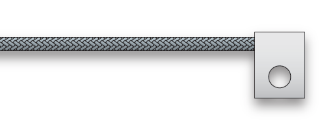

Bolt-On and Embedment RTD Sensors for Space Applications
Stainless-Steel RTD Sensors for Space Applications
The Minco S240890–S240893 family combines platinum RTD sensing with compact stainless-steel cases for bolt-on or embedment installation. These potted sensors are designed for demanding temperature, vibration and vacuum conditions.
- Pt100 (PD) or Pt1000 (PF), IEC 60751 Class B at 0°C.
- Operating range: -196 to 200°C (-320.8 to 392°F).
- Four case styles: mounting block, 1/4-20 bolt, M6 bolt and miniature embedment case.
- Configurable lead count, insulation and length; optional -RT resistance-temperature testing.
Screening is based on NASA S-311-P-842 Table VII and NASA EEE-INST-002, Section T1, Table 2, Level 2. Program-specific qualification and acceptance testing should be agreed for the application. Contact Mod-Tronic to confirm availability, lead time and mission-specific requirements.
Enter lead lengths of at least 1 inch in the configurator. For shorter or special lead requirements, contact Mod-Tronic.
Select & Configure Model
| Base Model # | Temperature Range | Sensing Element or Junction Type | Case Material | Normally In Stock | Add to Cart / Configure Part # |
| S240890 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel Mounting block, 0.50 × 0.375 × 0.188 in.; 0.166 in. hole Standard screening | Inquire | Configurator |
| S240890 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel Mounting block, 0.50 × 0.375 × 0.188 in.; 0.166 in. hole With optional -RT testing | Inquire | Configurator |
| S240891 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel 1/4-20 × 3/8 in. thread; 7/16 in. hex Standard screening | Inquire | Configurator |
| S240891 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel 1/4-20 × 3/8 in. thread; 7/16 in. hex With optional -RT testing | Inquire | Configurator |
| S240892 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel M6 × 1 thread, 10 mm long; 10 mm hex Standard screening | Inquire | Configurator |
| S240892 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel M6 × 1 thread, 10 mm long; 10 mm hex With optional -RT testing | Inquire | Configurator |
| S240893 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel Style C embedment; 0.300 × Ø0.125 in. Standard screening | Inquire | Configurator |
| S240893 | -196 to 200°C (-320.8 to 392°F) | Select in Configurator | Stainless steel Style C embedment; 0.300 × Ø0.125 in. With optional -RT testing | Inquire | Configurator |
