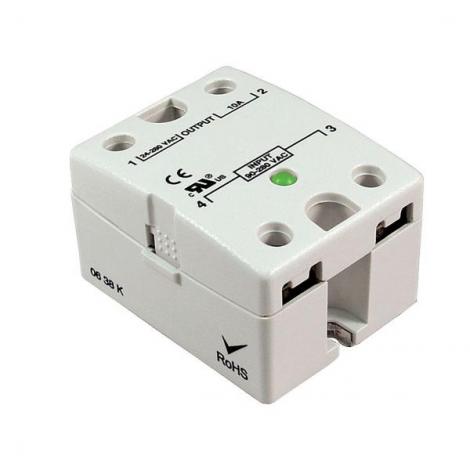

Series 62 Hockey Puck Solid State Relay
Hockey Puck Solid State Relay
Series 62 Hockey Puck Style Solid State Relay features a terminal cover and LED status indicator. The optically coupled circuitry isolates the input terminals from the output terminals to give the relay 100% pure solid state performance.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| 6210AXXSZS-AC90 | SSR, 10A, 90 to 280 VAC input. | Inquire | |
| 6210AXXSZS-DC3 | SSR, 10A, 3 to 32 VDC input. | Inquire | |
| 6225AXXSZS-AC90 | SSR, 25A, 90 to 280 VAC input. | Inquire | |
| 6225AXXSZS-DC3 | SSR, 25A, 3 to 32 VDC input. | Inquire | |
| 6240AXXSZS-AC90 | SSR, 40A, 90 to 280 VAC input. | Inquire | |
| 6240AXXSZS-DC3 | SSR, 40A, 3 to 32 VDC input. | Inquire |
