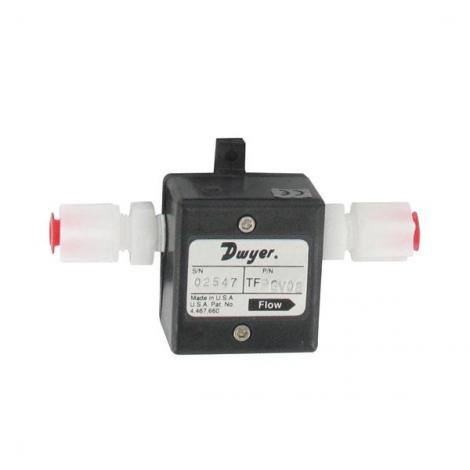

Series TFP-GV Gas Turbine Flow Meter
PPS Body, 0 to 5 VDC Output
The Series TFP-GV Gas Turbine Flowmeter utilizes a turbine wheel and electrooptical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.
Select & Configure Model
| Base Model # | Description | Normally In Stock | Configure Part # |
| TFP-GV03 | Gas turbine flow meter, range .042 to .21 SCFH (0.02 to 0.1 LPM), 1/8" OD connection. | Inquire | |
| TFP-GV04 | Gas turbine flow meter, range .085 to .42 SCFH (0.04 to 0.2 LPM), 1/8" OD connection. | Inquire | |
| TFP-GV05 | Gas turbine flow meter, range .21 to 1.1 SCFH (0.1 to 0.5 LPM), 1/8" OD connection. | Inquire | |
| TFP-GV06 | Gas turbine flow meter, range .42 to 2.1 SCFH (0.2 to 1 LPM), 1/8" OD connection. | Inquire | |
| TFP-GV07 | Gas turbine flow meter, range .85 to 4.2 SCFH (0.4 to 2 LPM), 1/4" OD connection. | Inquire | |
| TFP-GV08 | Gas turbine flow meter, range 2.1 to 11 SCFH (1 to 5 LPM), 1/4" OD connection. | Inquire | |
| TFP-GV09 | Gas turbine flow meter, range 4.2 to 21 SCFH (2 to 10 LPM), 1/4" OD connection. | Inquire | |
| TFP-GV10 | Gas turbine flow meter, range 8.5 to 42 SCFH (4 to 20 LPM), 3/8" OD connection. | Inquire | |
| TFP-GV11 | Gas turbine flow meter, range 21 to 110 SCFH (10 to 50 LPM), 3/8" OD connection. | Inquire | |
| TFP-GV12 | Gas turbine flow meter, range 42 to 210 SCFH (20 to 100 LPM), 1/2" OD connection. | Inquire | |
| TFP-GV13 | Gas turbine flow meter, range 85 to 420 SCFH (40 to 200 LPM), 1/2" OD connection. | Inquire |
